Motion detector

IS 240 DUO

Motion detector

IS 240 DUO black

EAN 4007841602710
  • Infrared motion detector with 240° detection angle and up to 12 m detection range

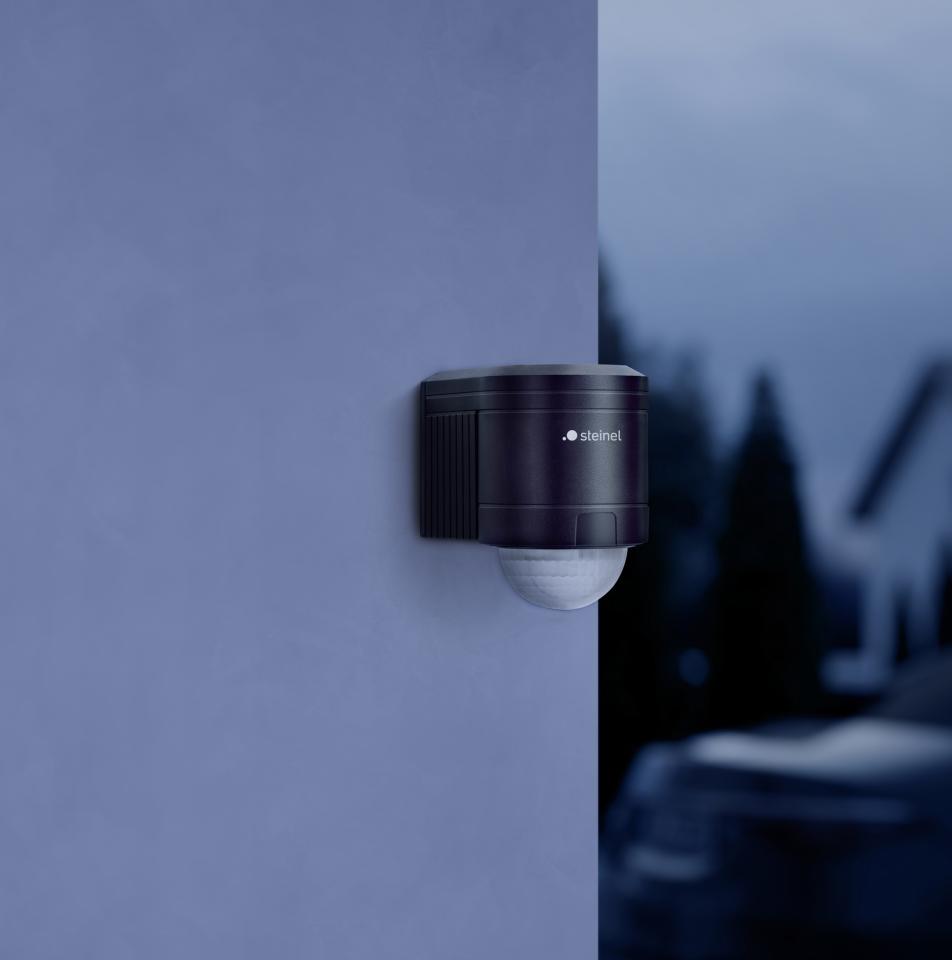

  • For wall or corner mounting (incl. corner wall bracket) indoors and outdoors (IP 54), for reliable and uninterrupted surveillance of an area in front of two house walls
  • Made of UV-resistant plastic for a long service life
  • Sensor can be swivelled horizontally by 160°, incl. cover plates for exact adjustment of the detection area
  • Stepless adjustment of time (10 sec. - 15 min.) and switch-on brightness (2-2000 lux)
  • Reliably switches any light source with a total of max. 1000 W switching load, connection of up to 6 LEDs possible
  • Incl. mounting accessories - plastic-free packaging
Contact Sales Team
  •
    You'll sleep deeply. With peace of mind.
  •
    You'll sleep deeply. With peace of mind.

You'll sleep deeply. With peace of mind.

At night or when it's getting dark, you can rely in full on the IS 240 DUO. We have fitted the motion detector with two highly sensitive infrared detectors so it can monitor large areas for you. Mounting the detector on an outside corner gives you an added advantage: reliable, uninterrupted coverage of an area in front of two building walls. Why install two sensors if the job can be done by one? The corner wall mount bracket is included.

Product Details
  • Image
    UV-resistant plastic
  • Image
    Including corner wall mount
Technical Specifications

Quick overview

Download datasheet
Application, place
Indoors, Outdoors
Installation
Surface wiring
Product category
Motion detector
Detection angle
240 °
Reach, tangential
r = 12 m (302 m²)
Mounting height max.
4,00 m
Interconnection via
Cable
Version
black
Article number
602710
image/svg+xml 60 100 90
infrared sensor 240°
max. 12 m
1000 W max.
IP54
160° horizontal
2 - 2000 lux
10 sec - 15 min
Ideal 2 m
energy saving

General

Dimensions (L x W x H)
100 x 60 x 90 mm
Manufacturer's Warranty
3 years
Settings via
Potentiometers
With remote control
No
Version
black
PU1, EAN
4007841602710
Type
Motion detectors
Application, place
Indoors, Outdoors
Application, room
outdoors, front door, all round the building, terrace / balcony, courtyard & driveway
Colour
black
Colour, RAL
9005

Fixation/ mounting

Includes corner wall mount
Yes
Installation site
wall, corner
Installation
Surface wiring, Wall, corner

Housing

IP-rating
IP54
Protection class
II
Ambient temperature
-20 – 50 °C
Material
Plastic

Electrical equipement

Mains power supply
230 V / 50 Hz
Switching output 1, resistive
1000 W
Switching output 1, number of LEDs / fluorescent lamps
6 stk.
Fluorescent lamps, electronic ballast
1000 W
Fluorescent lamps, uncorrected
500 VA
Fluorescent lamps, series-corrected
500 VA
Fluorescent lamps, parallel-corrected
5000 VA
Switching output 1, low-voltage halogen lamps
1000 VA
LED lamps < 2 W
16 W
LED lamps > 2 W < 8 W
64 W
LED lamps > 8 W
64 W
Capacitive load in μF
132 µF

General information

Article number
602710
European Article Number (EAN)
4007841602710
Detection angle
240 °
Angle of aperture
180 °

Sensor technology

Technology, sensors
passive infrared, Light sensor
Mounting height
1,80 – 4,00 m
Mounting height max.
4,00 m
Optimum mounting height
2 m
Sneak-by guard
Yes
Capability of masking out individual segments
Yes
Electronic scalability
No
Mechanical scalability
No
Reach, radial
r = 5 m (52 m²)
Reach, tangential
r = 12 m (302 m²)
Switching zones
276 Schaltzonen

Functions

Twilight setting
2 – 2000 lx
Time setting
10 s – 15 Min.
Basic light level function
No
Main light adjustable
No
Twilight setting TEACH
No
Constant-lighting control
No

Connection

Interconnection
Yes
Type of interconnection
Master/master
Interconnection via
Cable
