Motion detector - Professional Line

IS D360

Motion detector - Professional Line

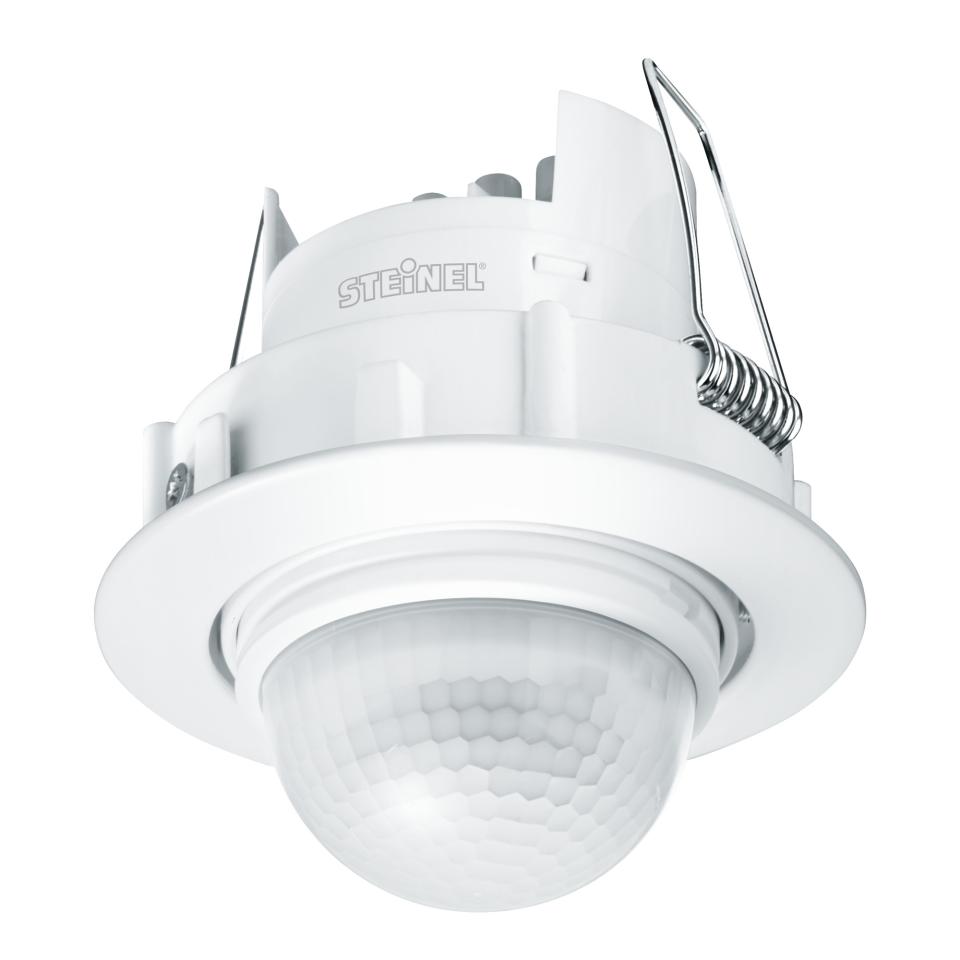

IS D360 white

EAN 4007841601317

The compact class. Recessed ceiling motion detector IS D360 for indoors, ideal for mounting in any standardized spot bezel, installation height up to 2.5 m, in the size of a bulb (e.g. GU10), 360° angle of coverage, max. reach 8 m (tangential), floating contact 50-250 volts.

Contact Sales Team
  •
    Fits in any ceiling. And goes with any spotlight.

Fits in any ceiling. And goes with any spotlight.

Control spotlights in suspended ceilings the more or less invisible way. The IS D360 fits in any standard spotlight surround. This is why at first glance it also looks like a normal lamp (e.g. GU10). The multi-lens only becomes apparent after taking a closer look. Cleverly integrated sensor technology from STEINEL.

Technical Specifications

Quick overview

Download datasheet
Application, place
Indoors
Installation
In-ceiling installation
Detection angle
360 °
Reach, tangential
Ø 16 m (201 m²)
Mounting height max.
4,00 m
Interconnection via
Cable
Version
white
Article number
601317
image/svg+xml 82 83 82
infrared sensor 360°
max. 8 m
1000 W max.
IP20
2 - 2000 lux
5 sec - 20 min
ideal 2,5 m
energy saving
manufacturer's warranty steinel-professional.de/garantie

General

Dimensions (Ø x H)
83 x 82 mm
Manufacturer's Warranty
5 years
Settings via
Potentiometers
With remote control
No
Version
white
PU1, EAN
4007841601317
Type
Motion detectors
Application, place
Indoors
Application, room
corridor / aisle, function room / ancillary room, WC / washroom, Indoors
Colour
white
Colour, RAL
9010

Fixation/ mounting

Includes corner wall mount
No
Installation site
ceiling
Installation
In-ceiling installation, Ceiling

Housing

IP-rating
IP20
Ambient temperature
-20 – 50 °C
Material
Plastic

Electrical equipement

Mains power supply
230 – 240 V / 50 Hz
Switching output 1, resistive
1000 W
Fluorescent lamps, electronic ballast
750 W
Fluorescent lamps, uncorrected
500 VA
Fluorescent lamps, series-corrected
900 VA
Switching output 1, low-voltage halogen lamps
1000 VA
LED lamps < 2 W
16 W
LED lamps > 2 W < 8 W
64 W
LED lamps > 8 W
64 W
Capacitive load in μF
88 µF

General information

Article number
601317
European Article Number (EAN)
4007841601317
Detection angle
360 °
Angle of aperture
180 °

Sensor technology

Technology, sensors
passive infrared, Light sensor
Mounting height
2,50 – 4,00 m
Mounting height max.
4,00 m
Optimum mounting height
2,5 m
Sneak-by guard
Yes
Capability of masking out individual segments
Yes
Electronic scalability
No
Mechanical scalability
No
Reach, radial
Ø 8 m (50 m²)
Reach, tangential
Ø 16 m (201 m²)
Switching zones
720 Schaltzonen

Functions

Twilight setting
2 – 2000 lx
Time setting
5 s – 20 Min.
Basic light level function
No
Main light adjustable
No
Twilight setting TEACH
No
Constant-lighting control
No

Connection

Interconnection
Yes
Type of interconnection
Master/master
Interconnection via
Cable

General information

Product category
Motion detector
Product Details
  • Image
    Any surround can be used. Installation dimensions: outer diameter = Ø 73 mm, installation depth = 53 mm
