Presence detector - Professional Line

IR Quattro SLIM 4m

Presence detector - Professional Line

IR Quattro SLIM 4m KNX

EAN 4007841058494

Genuine 16 m2 of presence detection concentrated on 4 mm. Control PRO IR Quattro SLIM KNX presence detector for indoors, ideal for small offices, store, service and utility rooms, washrooms and WCs, for mounting at a height of up to 4 m, with digital BUS interface for controlling 4 lighting channels and HVAC.

Contact Sales Team
  • You're watching:

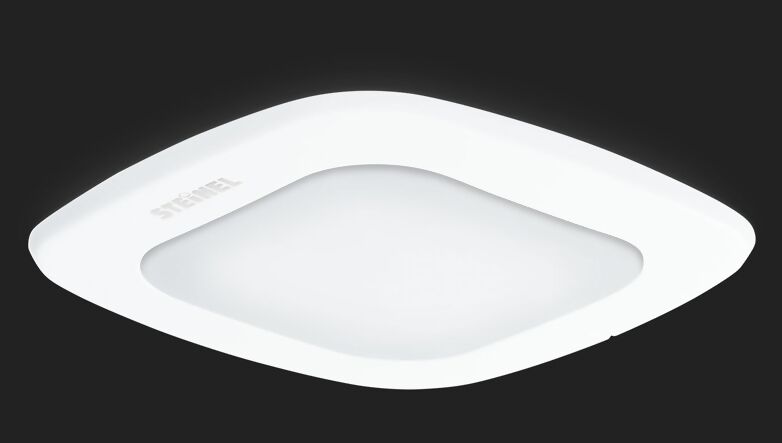

    Extremely slim. Incredibly sensitive.
  •
    Extremely slim. Incredibly sensitive.

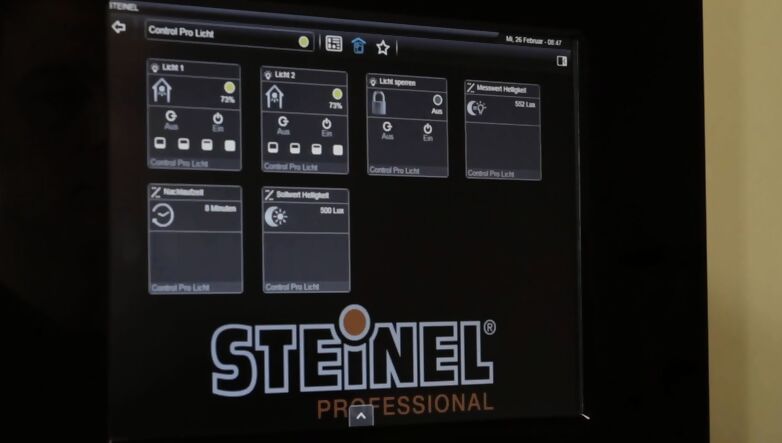

  • You're watching:
    Extremely slim. Incredibly sensitive.
  •
    Extremely slim. Incredibly sensitive.

Extremely slim. Incredibly sensitive.

Sensor technology is a must in many buildings today. But not without aesthetic appeal, please! This is precisely where the IR Quattro SLIM infrared presence detector comes in. With an overall depth of just 4 mm, it can be installed almost flush with the ceiling where it remains practically invisible to anyone looking up. As the only one of its kind in the world, the retina lens deserves all the more attention. Installed at a height of up to 4 metres and despite being so slim, it provides a true presence detection zone of an astonishing 16 m².

Technical Specifications

Quick overview

Download datasheet
Application, place
Indoors
Installation
In-ceiling installation
Detection angle
360 °
Reach, tangential
4 x 4 m (16 m²)
Mounting height max.
4,00 m
Interconnection via
KNX bus
Version
KNX
Article number
058494
image/svg+xml 55 77 77
infrared sensor max. 4m x 4m presence
max. 4 x 4 m presence
KNX 4 channel
10 - 1000 lux with RC 6
1 min - 15 min with RC 6
ideal 2,5 - 4 m
indoor sensor
Teach mode with RC 6
IQ-mode

General

Dimensions (L x W x H)
55 x 77 x 77 mm
With motion detector
Yes
Manufacturer's Warranty
5 years
Settings via
ETS software, Remote control, Bus, Smart Remote
With remote control
No
Version
KNX
PU1, EAN
4007841058494
Type
Presence detector
Application, place
Indoors
Application, room
one-person office, hotel room, care room, function room / ancillary room, WC / washroom, Indoors
Colour
white
Colour, RAL
9010

Fixation/ mounting

Includes corner wall mount
No
Installation site
ceiling
Installation
In-ceiling installation, Ceiling

Housing

IP-rating
IP20
Protection class
II
Ambient temperature
0 – 40 °C
Material
Plastic

Electrical equipement

Power supply, detail
KNX bus
With bus coupling
Yes

General information

Article number
058494
European Article Number (EAN)
4007841058494
Detection angle
360 °
Angle of aperture
71 °
Rated current
10 mA

Sensor technology

Technology, sensors
passive infrared, Photo-cell controller
Mounting height
2,50 – 4 m
Mounting height max.
4,00 m
Optimum mounting height
2,8 m
Sneak-by guard
Yes
Capability of masking out individual segments
No
Electronic scalability
No
Mechanical scalability
No
Reach, radial
4 x 4 m (16 m²)
Reach, tangential
4 x 4 m (16 m²)
Reach, presence
4 x 4 m (16 m²)
Switching zones
260 Schaltzonen

Functions

Twilight setting
10 – 1000 lx
Time setting
10 s – 1092 Min.
Basic light level function
Yes
Main light adjustable
0 - 100 %
Twilight setting TEACH
Yes
Constant-lighting control
No
KNX functions
Photo-cell controller, Basic light level function, Light level, HVAC output, Constant-lighting control, Light output 4x, Presence output, Day / night function, Logic gate

Connection

Interconnection
Yes
Type of interconnection
Master/master, Master/slave
Interconnection via
KNX bus

General information

Product category
Presence detector
Product Details
  • Image

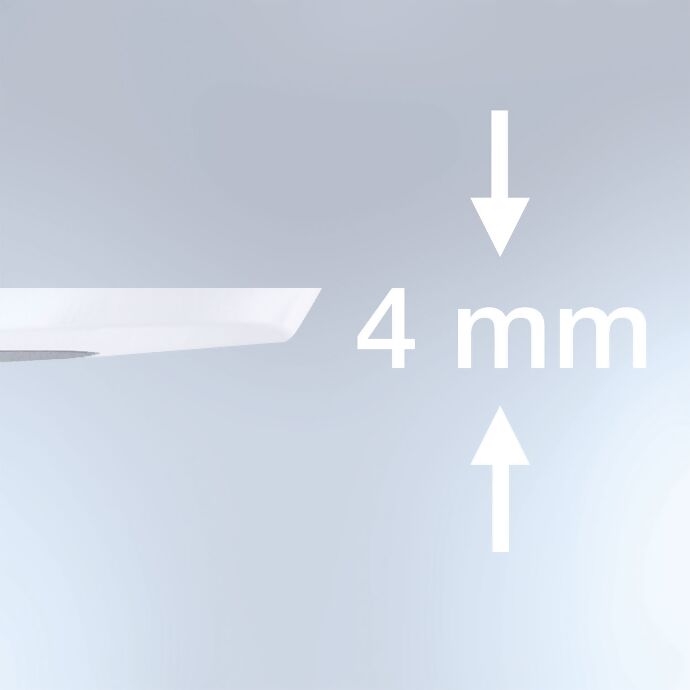

    Extremely slim overall height
  • Image

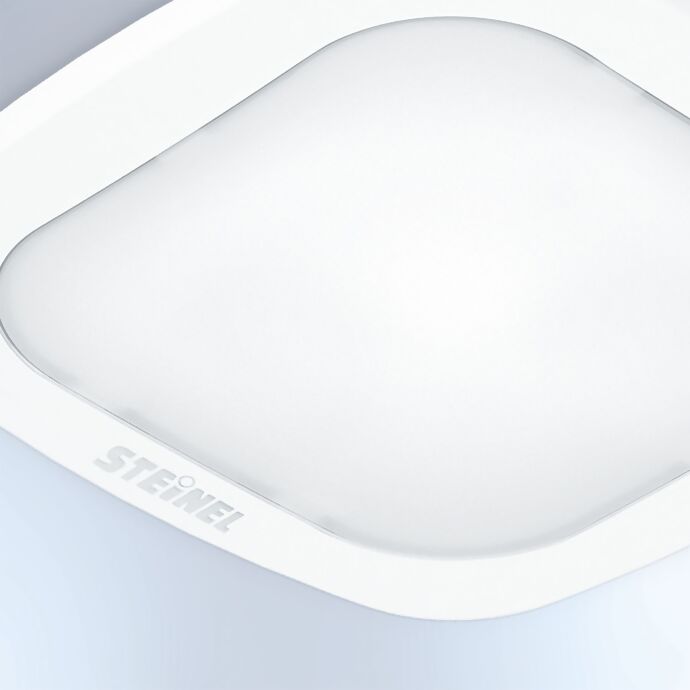

    High-quality retina lens
  • Image
    Can only be set using optional remote controls
  • Image

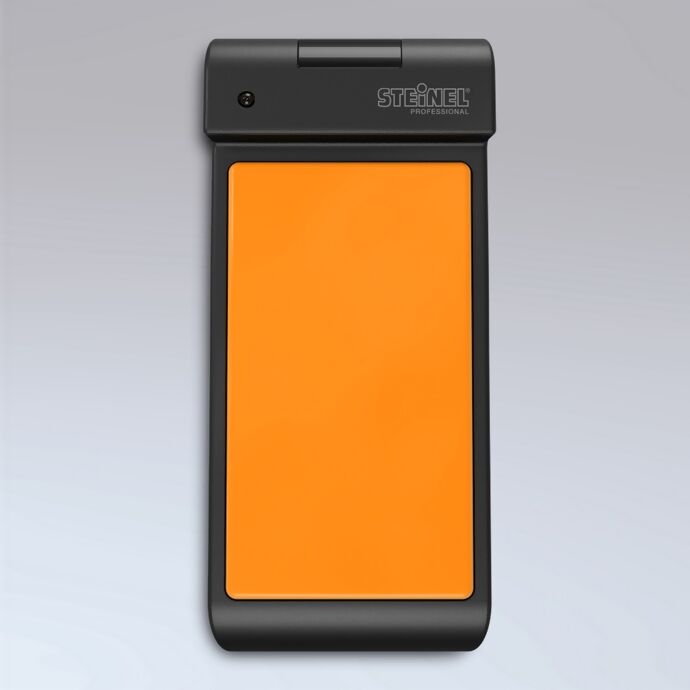

    Smart Remote remote control optional
