Hot air tool - Professional Line

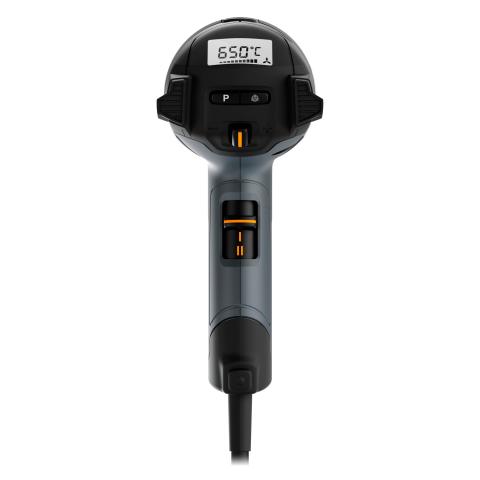

HG 2320 ESD

Hot air tool - Professional Line

HG 2320 ESD ESD

EAN 4007841020811

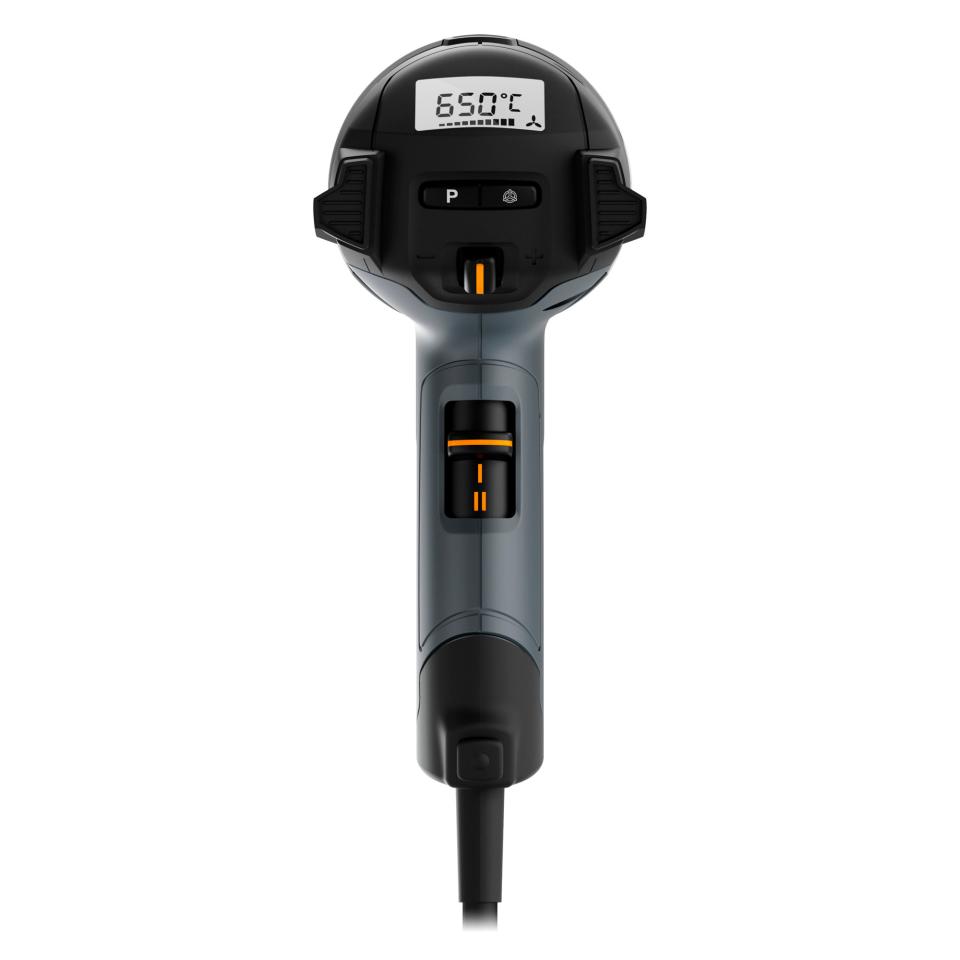

Precision digital control. Electronically controlled HG 2320 E hot air tool. 2300 W, digital temperature setting by joystick from 80 – 650 °C, temperature indicated in 10 °C steps on LCD display. Airflow regulation in 2 stages of 150 and 500 l/min. ESD-compliant, meets the requirements defined in IEC DIN EN 61340-5-1; part 5-1:2008 ff.

Contact Sales Team
  • You're watching:

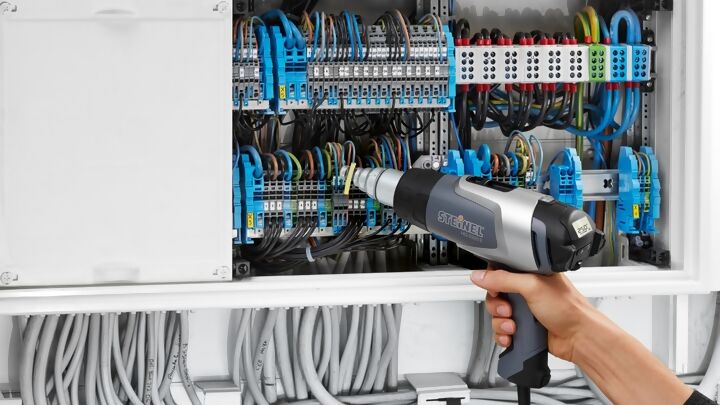

    Absolute safety in electronics manufacturing.
  •
    Absolute safety in electronics manufacturing.
  • You're watching:
    Absolute safety in electronics manufacturing.
  • You're watching:
    Absolute safety in electronics manufacturing.

Absolute safety in electronics manufacturing.

Fits perfectly in your hand and a real pleasure to use: the HG 2320 E comes with an impressive 2300 W of power and delivers hot air at between 80 – 650°C. Temperature is very easy to control via the joystick, giving you absolute precision. Together with the residual heat indicator, the LCD information display ensures additional certainty while the four individually selectable programmes provide extra flexibility. Coming with full ESD compliance, the HG 2320 ESD does not generate any static charges, making it an excellent choice for use in EPAs (ESD Protected Areas). If the cable should ever get damaged, it is very easy to change.

Technical Specifications
CE
VDE

General information

European Article Number (EAN)
4007841020811
Temperature
80 – 650 °C
Airflow rate
150 – 500 l/min
Temperature setting
in 10°C steps by joystick
Settings made via
joystick
Temperature display
LCD display
Airflow control
Settings
Programming function
Yes
Loc function
Yes
Residual heat indicator
Yes
Cool function
No
Motor, type
Brush motor
Heating element
Ceramic heating element
Function, hanger
Yes
Function, life expectancy, motor
1000 Std
Function, life expectancy, heating element
600 Std
Replaceable heating element
No
Restart protection
No
Temperature scanner
Yes
Fine dust filter
No
Thermal cut-out
Yes
Thermostat
Yes
ESD
Yes
Nozzle receiver, type
34
Cord length
3 m
PU1, net weight
1,044 kg

Electrical equipement

Mains power supply
220 – 230 V / 50 – 60 Hz
Output
2300 W

General

Dimensions (L x W x H)
253 x 87 x 200 mm
Manufacturer's Warranty
1 year
PU1, EAN
4007841020811
Product Details
  • Image
    Optimised weight balance
  • Image
    Non-slip standing surface
  • Image
    2-stage airflow
  • Image
    LCD information display and programmes
  • Image
    Temperature easy to set by joystick
  • Image
    Residual heat indicator
  • Image
    Heat build-up warning
  • Image
    Hanging ring
  • Image

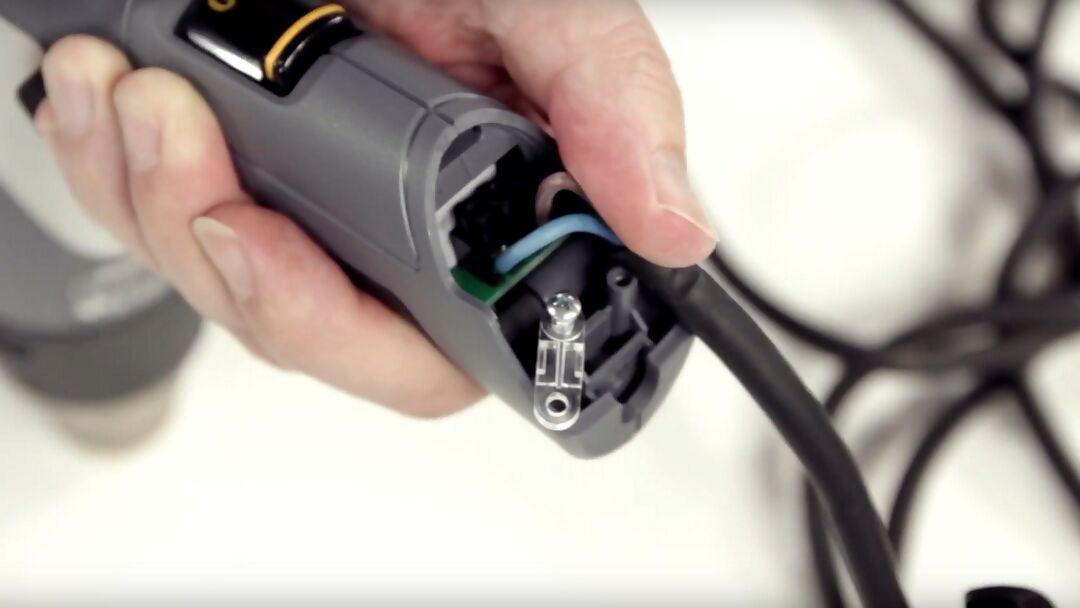

    Replaceable power cord
