Presence detector - Professional Line

HF 360-2

Presence detector - Professional Line

LuxMaster HF 360-2 DALI-2 APC - surface

EAN 4007841086589
  • High-frequency presence detector with 360° detection
  • Ideal for stairwells and toilets with cubicles
  • Digitally adjustable detection
  • Setting and networking via Bluetooth
  • Measurement of presence and brightness
  • DALI addressing of up to 64 participants in max. 4 groups
  • Operating modes: fully and semi-automatic, light sensor operation, night-time economy mode
  • Time-based control with time and day-dependent light profiles
  • Flexible system expansion possible with system components
  •
    Smart sensor system. A step further.
  •
    LuxMaster – unbeatable in flexibility and function.
  •
    The LuxMaster for toilet facilities.
Smart sensor system. A step further.

As a further development of the HF 360, the HF 360-2 also supplies digital data in addition to light switching. As a result, the HF 360-2 intelligent sensor in the KNX, IP and DALI-2 Input Device bus interfaces additionally measures temperature and humidity. The sensor's enhanced design is geared even more closely towards the modern look of STEINEL True Presence sensors. Conveniently interconnected and adjusted via Bluetooth, the HF 360-2 provides COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX as well as IP interfaces, and it is also available as BT IPD (Slave) version. The discreet surveillance specialist provides reliable 360° HF detection that also penetrates wood, glass and stud walls and comes with a reach of up to 12 m. Suitable for mounting heights of up to 4 m.

Technical Specifications
Quick overview
Download datasheet
Application, place
Indoors
Installation
Surface wiring
Detection angle
360 °
Reach, tangential
Ø 12 m (113 m²)
Mounting height max.
4,00 m
Interconnection via
Bluetooth Mesh
Version
DALI-2 APC - surface
Article number
086589
PU1, net weight
0,268 kg
123 123 57
high frequency sensor 360°
max. Ø 12 m
IP54
ideal 1 - 2,5 m
2 - 2000 lux
5 sec - 60 min
IQ-mode
Teach mode
KNX

General

Dimensions (L x W x H)
57 x 123 x 123 mm
Manufacturer's Warranty
5 years
Settings via
Bluetooth Mesh
With remote control
No
Version
DALI-2 APC - surface
PU1, EAN
4007841086589
Type
Presence detector
Application, place
Indoors
Application, room
function room / ancillary room, kitchenette, stairwell, WC / washroom, Indoors
Colour
white
Colour, RAL
9003

Fixation/ mounting

Includes corner wall mount
No
Installation site
ceiling
Installation
Surface wiring, Ceiling

Housing

IP-rating
IP54
Ambient temperature
from -25 up to 50 °C
Material
Plastic

Electrical equipement

Mains power supply
220 – 240 V / 50 – 60 Hz
Power supply, detail
max. 64 users
Control output, Dali
Addressable / broadcast 64 electronic ballasts

General information

Article number
086589
European Article Number (EAN)
4007841086589
Detection angle
360 °
Angle of aperture
160 °
Transmitter power
< 1 mW

Sensor technology

Technology, sensors
High frequency, Photo-cell controller
Mounting height
2,5 – 4 m
Mounting height max.
4,00 m
Optimum mounting height
2,8 m
HF-system
5,8 GHz
Detection
also through glass, wood and stud walls
Sneak-by guard
Yes
Capability of masking out individual segments
No
Electronic scalability
Yes
Mechanical scalability
No
Reach, radial
Ø 12 m (113 m²)
Reach, tangential
Ø 12 m (113 m²)

Functions

Functions
Semi-/fully automatic, Constant-lighting control, Lighting scenario, Master/slave override, Neighbouring group function, TouchDIM function
Twilight setting
2 – 2000 lx
Time setting
30 s – 60 Min.
Basic light level function
Yes
Basic light level function time
10 min, all day, all night
Main light adjustable
Yes
Twilight setting TEACH
Yes
Constant-lighting control
Yes

Connection

Interconnection
Yes
Interconnection via
Bluetooth Mesh

General information

Product category
Presence detector
Product Details

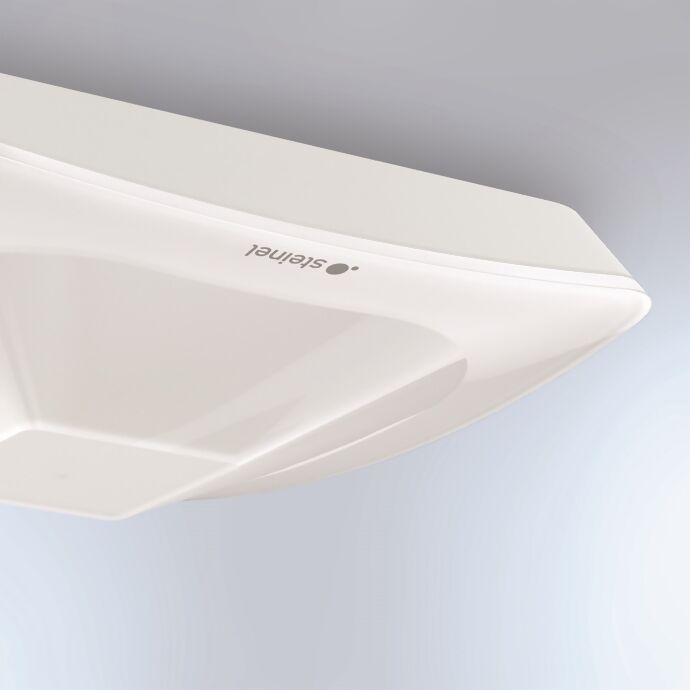

  • Image
    UV-resistant plastic
Downloads
Safety and Warning Instructions
1. Important Product Information
Please read carefully and keep in a safe place. – Under copyright. Reproduction either in whole or in part only with our consent.

2. General Safety Precautions
Risk of electric shock! 230 V means danger to life! Disconnect the power supply before attempting any work on the product. During installation, the electric power cable being connected may not be live. Therefore, switch off the power first and use a voltage tester to make sure the wiring is off-circuit. Installing the sensor involves work on the mains power supply. This work must therefore be carried out professionally in accordance with national wiring regulations and electrical operating conditions. (e.g. DE - VDE 0100, AT - ÖVE / ÖNORM E8001-1, CH - SEV 1000) For products with COM2 port: connection B1, B2 is a switching contact for low-energy circuits. This must be fuse-protected in line with the technical specifications. Only electronic ballasts with a floating control signal may be used at the DIM 1 to 10 V control output. No mains voltage may be connected to control output/input DA+ / DA-. Only use genuine replacement parts. Repairs may only be made by specialist workshops.

3. Proper Use
The use for which the sensor version is intended is described in the relevant general operating instructions. The general operating instructions can be opened by using the QR code from the Quick Start provided.

4. Electrical Connection
Important: incorrectly wired connections will produce a short circuit later on in the product or fuse box. In this case, you must identify the individual cables and re-connect them. An appropriate mains switch for switching ON and OFF can be installed in the mains lead.

5. Installation
Check all components for damage. Do not use the product if it is damaged. When installing the product, make sure the installation site is not subject to vibration. Select an appropriate mounting location, taking the reach and motion detection into consideration.

6. Cleaning and Maintenance
The product requires no maintenance. Hazard from electrical power. Contact between water and live parts can result in electrical shock, burns or death. Only clean the product in a dry state. Risk of damage to property! Using the wrong detergent can damage the product. Clean product with a moist cloth without detergent.

7. Disposal
Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner. Do not dispose of electrical and electronic equipment as domestic waste. EU countries only: Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.
