Sensor-switched indoor light - Professional Line

RS PRO R10 basic SC

Sensor-switched indoor light - Professional Line

RS PRO R10 basic SC warm white

EAN 4007841067816

Digital. Ingenious. Wirelessly adjustable via app, the digital RS PRO R10 basic SC sensor-switched light makes connected lighting incredibly easy. Easily started up, interconnected and adjusted in any chosen way via app, it comes with 3 lighting functions: basic light level, dimmable main light and emergency light. High-precision HF sensor (10 m reach). The opal diffuser bonnet ensures even light distribution. 8,5 W, 992 lm. 3000 K, 300 x 55 mm. Emergency lighting operation is alternatively possible via connection to central battery systems. The smaller packaging volume of the multipacks saves material and protects the environment.

Contact Sales Team
  • You're watching:
    Overview
  •
    Sensor light 4.0
  • You're watching:
    Connected Lighting in the application.
  •
    More functions
  •
    This is how you save.

Overview

See our R-Series in action. With the most intelligent sensor luminaire system of our time, you can combine optimal light with the simplest installation and networking. Warm white and neutral white versions with up to 3200 lumens. Backlight, ambient light, battery-operated emergency light, flexible overrun time and networking to area groups. And all this can be set via APP.

Technical Specifications

Quick overview

Download datasheet
Application, place
Indoors
Installation
Surface wiring
With motion detector
Yes
Interconnection via
Bluetooth Mesh Connect
Output
8,5 W
Luminous flux total product
992 lm
Colour temperature
3000 K
Article number
067816
PU1, net weight
1,079 kg
image/svg+xml 55 300 300
36 years (Ø 4,5h / day)
Settings via App
3000K warm-white
high frequency sensor 360°
max. 10 m
IP40
2 - 2000 lux
Light source not exchangeable
Control gear not exchangeable

General

Dimensions (Ø x H)
300 x 55 mm
With lamp
Yes, STEINEL LED system
With motion detector
Yes
Manufacturer's Warranty
5 years
Settings via
Bluetooth
With remote control
No
Version
warm white
PU1, EAN
4007841067816
Application, place
Indoors
Application, room
corridor / aisle, changing room, function room / ancillary room, kitchenette, stairwell, Indoors
Colour
white
Fuse protection B10
46
Fuse protection B16
74
Fuse protection C10
77
Fuse protection C16
122

Fixation/ mounting

includes sheet of self-adhesive numbers
No
Installation site
wall, ceiling
Installation
Wall, Ceiling, Surface wiring

Housing

Impact resistance
IK07
IP-rating
IP40
Protection class
II
Ambient temperature
from -20 up to 40 °C
Housing material
Plastic
Cover material
PC, opal
IP-rating, ceiling
IP40

Electrical equipement

Mains power supply
220 – 240 V / 50 – 60 Hz
Power consumption
0,3 W
Output
8,5 W
Starting current, maximum
13 A

Sensor technology

Mounting height max.
4,00 m
HF-system
5,8 GHz
Slave modeselectable
Yes
Detection
also through glass, wood and stud walls
Capability of masking out individual segments
Yes
Electronic scalability
Yes
Mechanical scalability
No
Reach, radial
Ø 10 m (79 m²)
Reach, tangential
Ø 10 m (79 m²)
Detection angle
360 °

Luminaire

Photo-cell controller
Yes
Luminous flux total product
992 lm
Total product efficiency
117 lm/W
Colour temperature
3000 K
Colour variation LED
SDCM3
Lamp
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
Yes
Continuous light
selectable
Lifetime LED according to IEC-62717 (L70)
100.000 h
Lifetime LED according to IEC-62717 (L80)
74.000 h
Lebensdauer LED nach IES TM-21 (L70)
>60.000 h
Lifetime LED according to IES TM-21 (L80)
>60.000 h
Colour Rendering Index CRI
= 82
Photobiological safety in accordance with EN 62471
RG1

General information

Article number
067816
European Article Number (EAN)
4007841067816
Transmitter power
< 1 mW
Basic light level function in per cent
0 – 100 %
Angle of aperture
160 °

Functions

Functions
Group parameterisation, Manual ON / ON-OFF, Neighbouring group function, Orientation light, Motions sensor, Light sensor, Encrypted communication, Free selection of the light value in a luminaire group, Adjustable fade time when switching on and off
Twilight setting
2 – 2000 lx
Time setting
5 s – 60 Min.
Basic light level function
Yes
Basic light level function, detail
LED effect light
Basic light level function time
1-60 min
Main light adjustable
0 - 100 %
Twilight setting TEACH
Yes

Connection

Interconnection
Yes
Type of interconnection
Master/master
Interconnection via
Bluetooth Mesh Connect

General information

Product category
Sensor-switched indoor light
Product Details
  • Image
    Including STEINEL LED system
  • Image

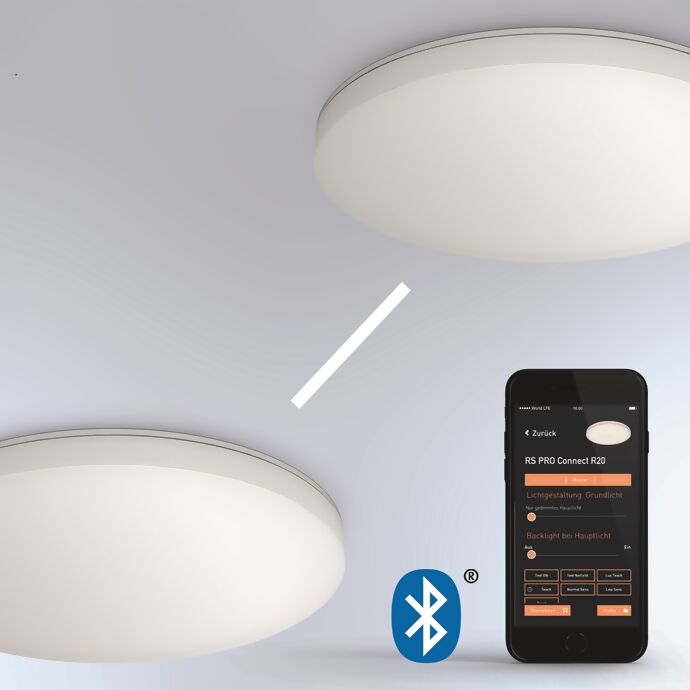

    Interconnectable and adjustable via Bluetooth
  • Image
    Impact-resistant material rated to IK07
  • Image
    Optional emergency light
  • Image
    Optional basic lighting level 0 - 100 %
  • Image
    Adjustable main light brighness (0 - 100%)
  • Image
    Modern plug-in terminals for straightforward installation
  • Image
    Metal shrouds for defining the direction of sensor detection
Downloads
Sicherheits- und Warnhinweise
1. Important product
information
Please read carefully and keep in a safe
place.
– Under copyright. Reproduction either in
whole or in part only with our consent.
2. General safety precautions
Risk of electric shock!
230 V means danger to life!
• Disconnect the power supply before
attempting any work on the unit.
• During installation, the electric power cable
being connected must not be live. Therefore,
switch off the power first and use a voltage
tester to make sure the wiring is off-circuit.
• Installing the sensor-switched light involves
work on the mains voltage supply. This
work must therefore be carried out
professionally in accordance with national
wiring regulations and electrical operating
conditions. (e.g. DE - VDE 0100, AT - ÖVE
/ ÖNORM E8001-1, CH - SEV 1000)
• Only use genuine replacement parts.
• Repairs may only be made by specialist
workshops.
3. Proper use
Sensor-switched wall/ceiling light with active
motion detector. Limited suitability for outdoor
use as a result of detection sensitivity.
4. Electrical Connection
Important: the light source of this luminaire
cannot be replaced. If the light source needs
to be replaced (e.g. at the end of its service
life), the complete luminaire must be replaced.
Connection to a dimmer will result in damage to
the sensor-switched light.
Note: do not make direct contact with the LED.
5. Installation
• Check all components for damage.
• Do not use the product if it is damaged.
• When installing the unit, make sure the
installation site is not subject to vibration.
• Select an appropriate mounting location,
taking the reach and motion detection into
consideration.
6. Cleaning and Maintenance
The unit requires no maintenance.
Hazard from electrical power.
Contact between water and live parts can
result in electrical shock, burns or death.
• Only clean unit in a dry state.
Risk of damage to property!
Using the wrong detergent can damage
the light.
• Clean unit with a moist cloth
without detergent.
7. Disposal
Electrical and electronic equipment, accessories
and packaging must be recycled in an
environmentally compatible manner.
Do not dispose of electrical and
electronic equipment as domestic
waste.
EU countries only: Under the current
European Directive on Waste Electrical and
Electronic Equipment and its implementation
in national law, electrical and electronic
equipment no longer suitable for use must
be collected separately and recycled in an
environmentally compatible manner.
Manufacturer information
Manufacturer
STEINEL GmbH
Dieselstraße 80-84
33442 Herzebrock-Clarholz
Germany
