Presence detector - Professional Line

Dual HF

Presence detector - Professional Line

Dual HF COM1 - Concealed wiring

EAN 4007841002978

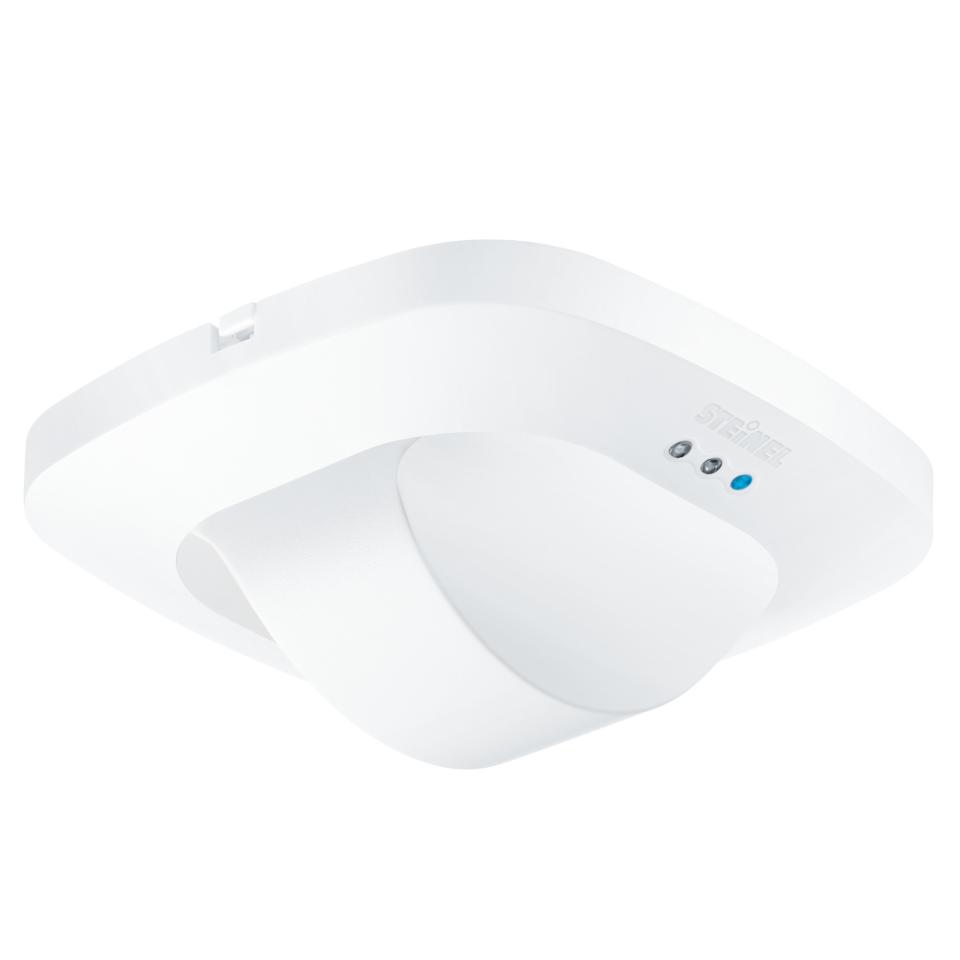

Twice as vigilant! High-frequency corridor sensor Presence Control PRO Dual HF COM1 for indoors, ideal for passageways and long corridors, installation height up to 3.5 m, for switching light 'ON' and 'OFF', DUAL-HF technology for detecting radial movement over up to 20 m in two directions, detection regardless of temperature, HF-sensor technology detects movement through glass, wood and stud walls, switches light 'ON' almost instantly.

Contact Sales Team
  •
    A corridor sensor that points the way. Both in technology and design.
  •
    A corridor sensor that points the way. Both in technology and design.

A corridor sensor that points the way. Both in technology and design.

The Dual HF corridor sensor works with high-frequency technology that's particularly advanced. The system is fitted with 2 sensors, with each covering one corridor direction. Both of them together cover a good 20 metres in walking direction - for complete and reliable detection without blind spots. Tangential reach is deliberately limited to corridor width so as to avoid detecting movements behind closed doors, for instance.

Technical Specifications

Quick overview

Download datasheet
Application, place
Indoors
Installation
Concealed wiring
Detection angle
360 °
Reach, tangential
20 x 3 m (60 m²)
Mounting height max.
3,50 m
Interconnection via
Cable
Version
COM1 - Concealed wiring
Article number
002978
image/svg+xml 75 120 120
high frequency sensor 360°
max. 20 x 3 m
max. 2000 W
IP20
ideal 2,5 - 3,5 m
indoor sensor
IQ-mode
Teach mode
energy saving

General

Dimensions (L x W x H)
74 x 120 x 120 mm
Manufacturer's Warranty
5 years

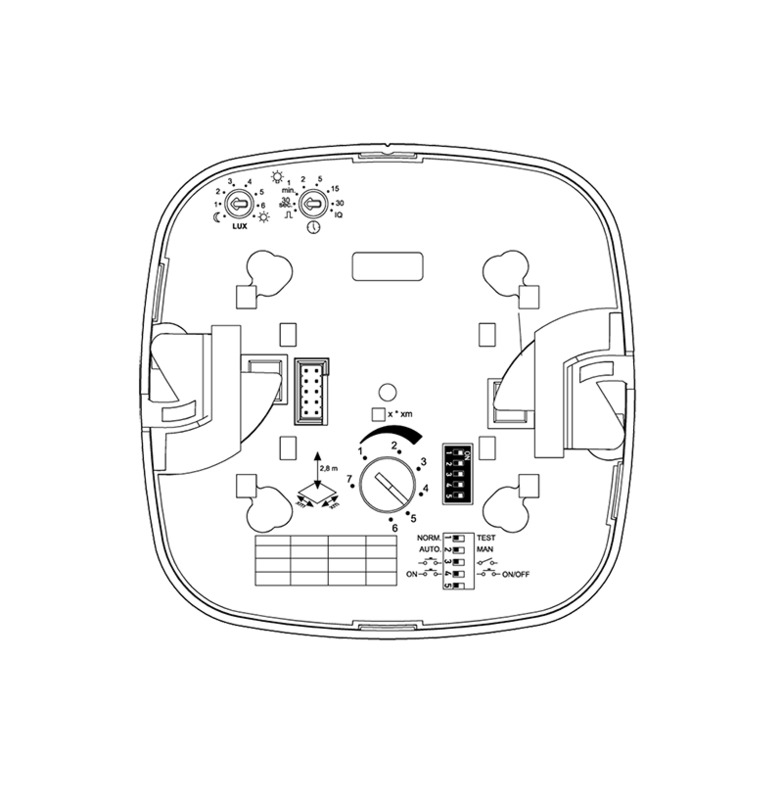

Settings via
Remote control, DIP switches, Potentiometers, Smart Remote
With remote control
No
Version
COM1 - Concealed wiring
PU1, EAN
4007841002978
Type
Presence detector
Application, place
Indoors
Application, room
corridor / aisle, Indoors
Colour
white
Colour, RAL
9010

Fixation/ mounting

Includes corner wall mount
No
Installation site
ceiling
Installation
Concealed wiring, Ceiling

Housing

IP-rating
IP20
Ambient temperature
-25 – 55 °C
Material
Plastic

Electrical equipement

Mains power supply
230 V / 50 – 60 Hz
Fluorescent lamps, electronic ballast
1500 W
Fluorescent lamps, uncorrected
1000 VA
Fluorescent lamps, series-corrected
1000 VA
Fluorescent lamps, parallel-corrected
1000 VA
Switching output 1, low-voltage halogen lamps
2000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
300 W
LED lamps > 8 W
600 W
Capacitive load in μF
176 µF

General information

Article number
002978
European Article Number (EAN)
4007841002978
Detection angle
Aisle, 360 °
Angle of aperture
140 °
Transmitter power
< 1 mW

Sensor technology

Technology, sensors
High frequency, Light sensor
Mounting height
2,50 – 3,50 m
Mounting height max.
3,50 m
Optimum mounting height
2,8 m
HF-system
5,8 GHz
Detection
also through glass, wood and stud walls
Sneak-by guard
Yes
Capability of masking out individual segments
No
Electronic scalability
Yes
Mechanical scalability
No
Reach, radial
20 x 3 m (60 m²)
Reach, tangential
20 x 3 m (60 m²)

Functions

Functions
Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF
Twilight setting
10 – 1000 lx
Time setting
30 s – 30 Min.
Basic light level function
No
Main light adjustable
No
Twilight setting TEACH
Yes
Constant-lighting control
No

Connection

Interconnection
Yes
Type of interconnection
Master/master, Master/slave
Interconnection via
Cable
Interconnection, number
max. 10 sensors

General information

Product category
Presence detector
Product Details
  • Image
    Optional remote controls
  • Image
    Optional surface-mounting adapter
  • Image
    Optional guard cage
  • Image
    HF ceiling adapter for installation in suspended ceilings
