Sensor-switched indoor light

RS 16 L S

Sensor-switched indoor light

RS 16 L S

EAN 4007841738013

Great value. High-frequency indoor light RS 16 L S, ideal for corridors, hallways, stairwells and bathrooms, 360° angle of coverage, infinitely variable electronic reach setting from 3 - 8 m, selectable time and twilight threshold, capability of connecting additional loads (e.g. extractor fan).

  •
    This is how you save.
  • You're watching:
    Clean lines. Full of expression.
  •
    Clean lines. Full of expression.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when motion is detected.

Product Details
  • Image

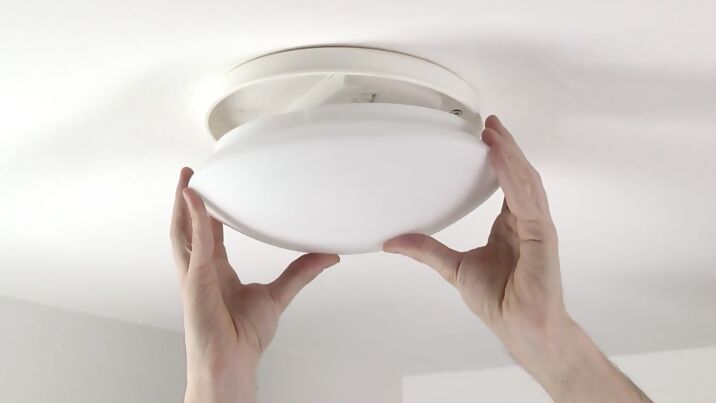

    High-quality opal glass shade
Technical Specifications

Quick overview

Download datasheet
Application, place
Indoors
Installation
Surface wiring
With motion detector
Yes
Interconnection via
Cable
Output
60 W
Article number
738013
max. 60 W E27
high frequency sensor 360°
Ø 3 - 8 m
IP44
2 - 2000 lux
5 sec - 15 min
energy saving
manufacture's warranty steinel.de/garantie
CE

General

Dimensions (Ø x H)
275 x 95 mm
With lamp
No
With motion detector
Yes
Manufacturer's Warranty
3 years
Settings via
Potentiometers
With remote control
No
PU1, EAN
4007841738013
Application, place
Indoors
Application, room
corridor / aisle, function room / ancillary room, stairwell, WC / washroom, outdoors, Indoors
Colour
white

Fixation/ mounting

Installation site
wall, ceiling
Installation
Wall, Ceiling, Surface wiring

Housing

Impact resistance
IK03
IP-rating
IP44
Protection class
II
Ambient temperature
-10 – 40 °C
Housing material
Plastic
Cover material
Glass opal
IP-rating, ceiling
IP44

Electrical equipement

Mains power supply
230 – 240 V / 50 Hz
Switching output 1, resistive
800 W
Power consumption
1,1 W
Output
60 W

Sensor technology

Mounting height max.
4,00 m
HF-system
5,8 GHz
Detection
also through glass, wood and stud walls
Capability of masking out individual segments
No
Electronic scalability
Yes
Mechanical scalability
No
Reach, radial
Ø 8 m (50 m²)
Reach, tangential
Ø 8 m (50 m²)

General information

Article number
738013
European Article Number (EAN)
4007841738013
Transmitter power
< 1 mW
Angle of aperture
160 °

Luminaire

Photo-cell controller
Yes
Lamp
All-purpose lamp
Base
E27
Soft light start
No
Continuous light
selectable

Functions

Twilight setting
2 – 2000 lx
Time setting
5 s – 15 Min.
Basic light level function
No
Twilight setting TEACH
No

Connection

Interconnection
Yes
Type of interconnection
Master/master
Interconnection via
Cable
