1. Important product
information
Please read carefully and keep in a safe place.
– Under copyright. Reproduction either in whole
or in part only with our consent.
2. General safety precautions
Risk of electric shock!
230 V means danger to life!
• Disconnect the power supply before attempting
any work on the unit.
• During installation, the electric power cable
being connected must not be live. Therefore,
switch off the power first and use a voltage
tester to make sure the wiring is off-circuit.
• Installing the LED floodlight involves work
on the mains voltage supply; installation
must therefore be carried out professionally
in accordance with the applicable national
wiring regulations and electrical operating
conditions (e.g. DE - VDE 0100, AT - ÖVE/
ÖNORM E 8001-1, CH - SEV 1000).
• Contact between water and live parts can
result in electrical shock, burns or death. Light
must not be wet-cleaned.
• Only use genuine replacement parts.
• Repairs may only be made by specialist
workshops.
• The LED floodlight must be positioned so
that it is not expected that anybody can stare
into the light for any prolonged period from a
distance of less than 0.3 m.
• The floodlight enclosure heats up when the
light is on. Only adjust the angle of the LED
panel once it has cooled down.
• Do not install the LED floodlight on normally
flammable surfaces.
• The cable must not be replaced if it gets
damaged. If the cable is damaged, you must
replace the entire bracket floodlight with cable.
3. Proper use

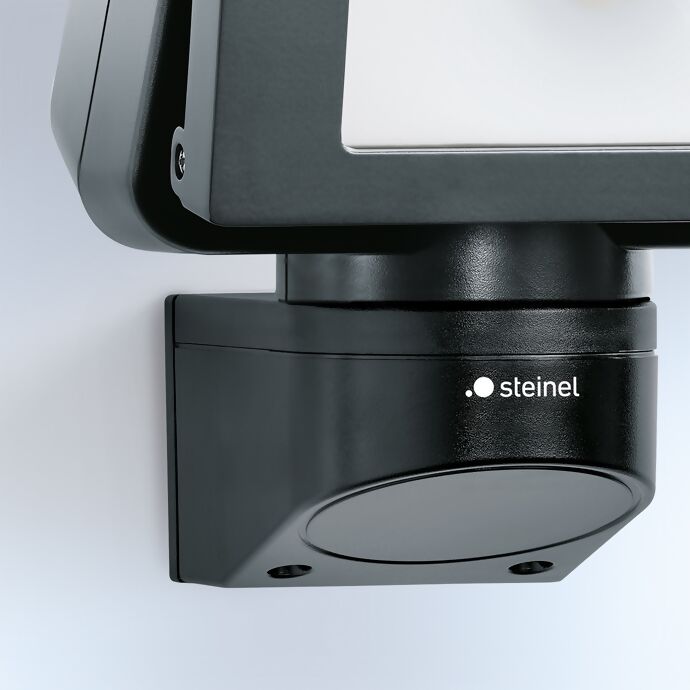

LED floodlight
– Sensor-switched LED floodlight with/without
sensor suitable for wall mounting outdoors.
Camera LED floodlight:
– LED floodlight with sensor suitable for wall
mounting outdoors.
– Integrated camera and intercom system.
4. Electrical Connection
Important: incorrectly wired connections will
produce a short circuit later on in the LED floodlight
or your fuse box. In this case, you must
identify the individual conductors once again and
reconnect them.
The light source of this LED floodlight cannot
be replaced. If the light source needs to be
replaced (e.g. at the end of its service life), the
complete LED floodlight must be replaced.
5. Installation
• Check all components for damage.
• Do not use the product if the LED floodlight
is damaged.
• When installing the unit, make sure the
installation
site is not subject to vibration.
• Select appropriate site of installation, giving
consideration to reach, motion detection and
direction in which the LED floodlight is aimed.
6. Operation
The LED floodlight is not suitable for burglar
alarm systems as it is not tamperproof in the
manner prescribed for such systems. Weather
conditions may affect the way the LED floodlight
works. Strong gusts of wind, snow, rain and hail
may cause the light to come ON when it is not
wanted because the sensor is unable to distinguish
between sudden changes in temperature
and sources of heat.
7. Cleaning and Maintenance
The unit requires no maintenance.
Hazard from electrical power.
Contact between water and live parts can result
in electrical shock, burns or death.
• Only clean unit in a dry state.
Risk of damage to property!
Using the wrong detergent can damage the light.
• Clean unit with a moist cloth without detergent.
8. Disposal
Electrical and electronic equipment, accessories
and packaging must be recycled in an environmentally
compatible manner.
Do not dispose of electrical and
electronic equipment as domestic
waste.
EU countries only: Under the current European
Directive on Waste Electrical and Electronic
Equipment and its implementation in national
law, electrical and electronic equipment no
longer
suitable for use must be collected
separately and recycled in an environmentally
compatible manner.
