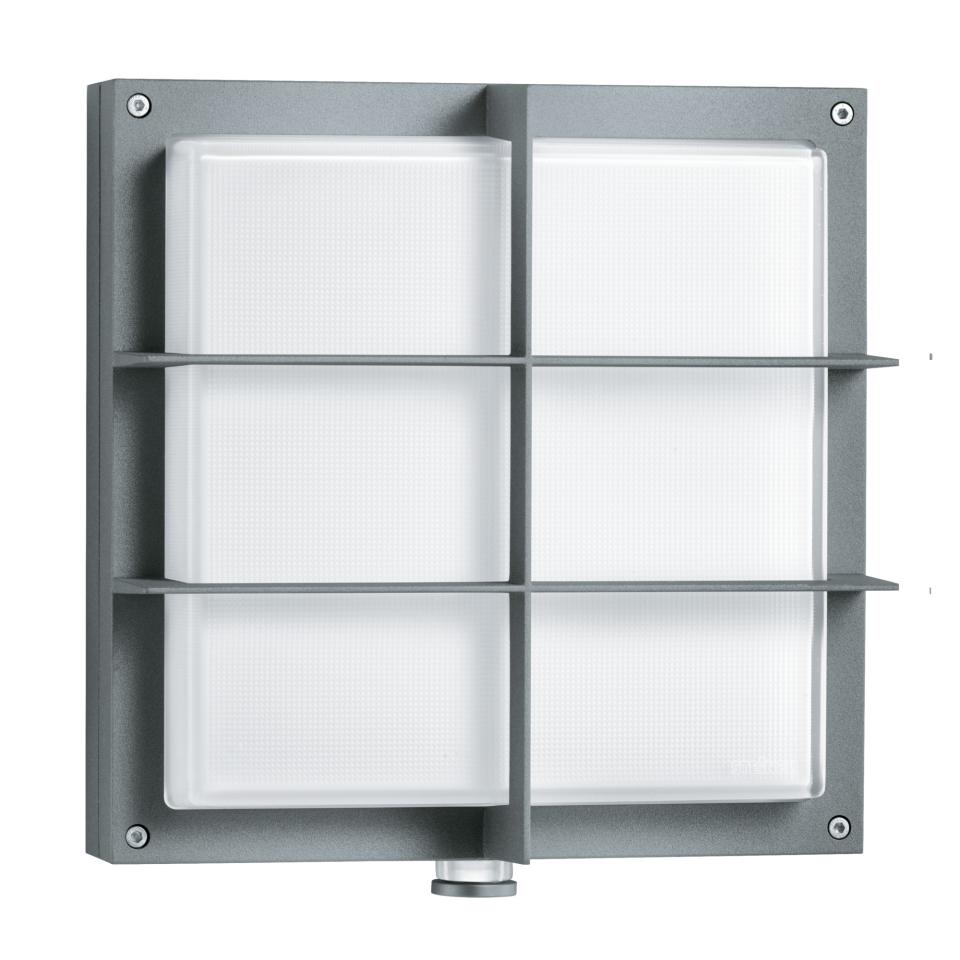

Sensor-switched LED outdoor light - Professional Line

L 691 S

Sensor-switched LED outdoor light - Professional Line

L 691 S PMMA anthracite

EAN 4007841053031

Ruggedness squared. Providing 576 lm of light from just 8,5 W, the L 691 S is now even brighter and even more energy-efficient. The square LED sensor-switched outdoor light with aluminium base and impact-resistant PMMA shade also comes with a sturdy grid guard – for even greater security. With 360° infrared mini sensor, 7 m reach, basic light-level function, soft light start, time and twilight threshold. Can be interconnected by cable.

Contact Sales Team
  •
    This is how you save.
  •
    Timelessly beautiful. And extremely tough.
  •
    Timelessly beautiful. And extremely tough.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when movement is detected.

Technical Specifications

Quick overview

Download datasheet
Application, place
Outdoors
Installation
Surface wiring
With motion detector
Yes
Interconnection via
Cable
Output
8,5 W
Luminous flux total product
576 lm
Colour temperature
3000 K
Article number
053031
Product category
Sensor-switched LED outdoor light
image/svg+xml 291 126 303
30 years (Ø 4,5h / day)
3000K warm-white
infrared sensor 360°
IP44
2 - 1000 lux
5 sec - 15 min
soft light start
Light source not exchangeable
Control gear not exchangeable

General

Dimensions (L x W x H)
126 x 291 x 303 mm
With lamp
Yes, STEINEL LED system
Manufacturer's Warranty
5 years
Settings via
Potentiometers
With remote control
No
Version
PMMA anthracite
PU1, EAN
4007841053031
Application, place
Outdoors
Application, room
outdoors, front door, all round the building, courtyard & driveway
Colour
Anthracite

Fixation/ mounting

Installation site
wall

Housing

Impact resistance
IK07
IP-rating
IP44
Protection class
II
Ambient temperature
-20 – 50 °C
Housing material
Aluminium
Cover material
Plastic, opal

Electrical equipement

Mains power supply
220 – 240 V / 50 – 60 Hz
Output
8,5 W
Average rated life expectancy of power supply unit at 25°C
> 60000 h

Sensor technology

Mounting height max.
2,50 m
Slave modeselectable
No
Sneak-by guard
Yes
Capability of masking out individual segments
Yes
Electronic scalability
No
Mechanical scalability
No
Reach, radial
r = 1.5 m (7 m²)
Reach, tangential
r = 7 m (154 m²)
Cover material
shrouds
Optimum mounting height
2 m
Detection angle
360 °

Luminaire

Photo-cell controller
Yes
Luminous flux total product
576 lm
Measured luminos flux (360°)
576 lm
Total product efficiency
68 lm/W
Colour temperature
3000 K
Colour variation LED
SDCM3
Lamp
LED cannot be replaced
Service life LED L70B50 (25°)
> 60000 h
Base
without
LED cooling system
Passive Thermo Control
Soft light start
Yes
Continuous light
selectable, 4h
Colour Rendering Index CRI
= 82

General information

Article number
053031
European Article Number (EAN)
4007841053031
Basic light level function in per cent
10 %
Basic light level function percentage, from
10 %
Basic light level function percentage, up to
10 %

Functions

Functions
4 programme settings geared to practical needs, can be selected on removable sensor module
Twilight setting
2 – 1000 lx
Time setting
5 s – 15 Min.
Basic light level function
Yes
Basic light level function time
10/30 min, all night

Connection

Interconnection
Yes
Interconnection via
Cable
Product Details
  • Image
    Including STEINEL LED system
  • Image
    Intelligent soft light start
  • Image
    Optional basic lighting level 10 %
  • Image

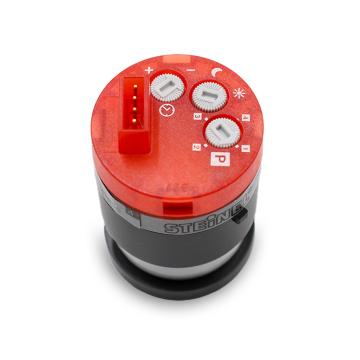

    Sensor with 4 intelligent programmes
  • Image
    High-quality aluminium
  • Image

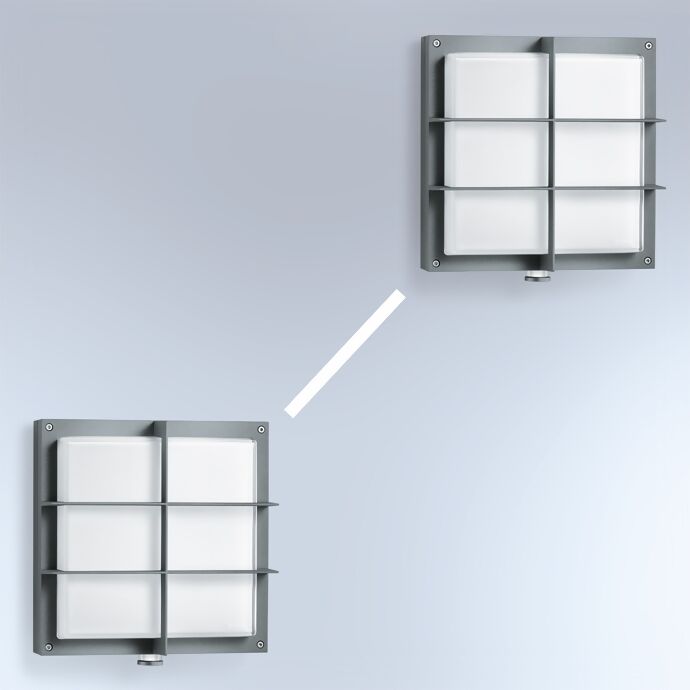

    Interconnectable by cable (K-line)
  • Image
    Impact-resistant material rated to IK07
