Presence detector - Professional Line

IR Quattro HD 24m DALI duo

Presence detector - Professional Line

IR Quattro HD 24m DALI duo In-ceiling installation

EAN 4007841088828
  • The entry-level solution for intelligent lighting control
  • Ideal for classrooms, conference rooms and large offices
  • Infrared presence detector with 64 sqm presence detection, mounting height max. 10 m
  • DALI-APC for controlling up to 64 luminaires
  • 2 light channels, 3 push-button inputs and 4800 switching zones
  • Additional, potential-free relay
  • Constant light control, teach function, optional main and ambient light
  • Simple commissioning via Smart Remote app
Contact Sales Team
  •
    Great solution - not only in the classroom.

Great solution - not only in the classroom.

For 15 years now, the name ‘IR Quattro HD’ has stood for excellent performance in infrared detection with mechanical range adjustment. The new IR Quattro HD DALI duo continues this tradition confidently and convincingly. Classrooms, conference rooms and larger offices are the primary areas of application for the new IR Quattro HD DALI duo. The pleasantly compact infrared presence detector, equipped with two light channels, contains a fully-fledged, intelligent light management system. The ideal prerequisites for creating customised light and a good learning and working atmosphere. Even including switchable lighting - thanks to the integrated relay. In short: a worthy new addition to the ‘IR Quattro HD’ family, which is ideal for constant light control in classrooms. Incidentally, top marks are also awarded for commissioning, which is carried out via the practical Smart Remote app and is extremely simple.

Technical Specifications

Quick overview

Download datasheet
Application, place
Indoors
Installation
In-ceiling installation
Detection angle
360 °
Reach, tangential
20 x 20 m (400 m²)
Mounting height max.
10,00 m
Interconnection via
DALI bus
Version
In-ceiling installation
Article number
088828
PU1, net weight
0,345 kg
image/svg+xml 120 120 119
infrared sensor
max. 8m x 8m presence
4800 zones
ideal 2,5 - 10 m
indoor sensor
2+1 light channels
10 - 1000 lux
5 sec - 60 min
IQ-mode

General

Dimensions (L x W x H)
120 x 120 x 119 mm
With motion detector
Yes
Manufacturer's Warranty
5 years
Settings via
Remote control, Smart Remote
With remote control
No
Version
In-ceiling installation
PU1, EAN
4007841088828
Type
Presence detector
Application, place
Indoors
Application, room
classroom, lecture hall, open-plan office, high-bay warehouse, production facilities, conference room / meeting room, duty room, recreation room, changing room, sports hall, reception / lobby, multi-storey / underground car park, Indoors
Colour
white
Colour, RAL
9010

Fixation/ mounting

Includes corner wall mount
No
Installation site
ceiling
Installation
In-ceiling installation, Ceiling

Housing

IP-rating
IP20
Ambient temperature
from 0 up to 40 °C
Material
Plastic

Electrical equipement

Mains power supply
220 – 240 V / 50 – 60 Hz
Power consumption
0,5 W
Steuerausgang, Dali
Addressable / broadcast 64 electronic ballasts

General information

Article number
088828
European Article Number (EAN)
4007841088828
Detection angle
360 °
Angle of aperture
160 °

Sensor technology

Technology, sensors
passive infrared, Light sensor
Mounting height
2,50 – 10,00 m
Mounting height max.
10,00 m
Optimum mounting height
2,8 m
Sneak-by guard
Yes
Capability of masking out individual segments
No
Electronic scalability
No
Mechanical scalability
Yes
Reach, radial
8 x 8 m (64 m²)
Reach, tangential
20 x 20 m (400 m²)
Reach, presence
8 x 8 m (64 m²)
Switching zones
4800 Schaltzonen

Functions

Functions
Semi-/fully automatic, Constant-lighting control ON-OFF, Master/slave override, Normal / test mode, TouchDIM function
Twilight setting
10 – 1000 lx
Time setting
5 s – 60 Min.
Basic light level function
Yes
Basic light level function time
1-60 min, all night
Main light adjustable
50 - 100 %
Twilight setting TEACH
Yes
Constant-lighting control
Yes

Connection

Interconnection
Yes
Type of interconnection
Master/slave
Interconnection via
DALI bus

General information

Product category
Presence detector
Product Details
  • Image

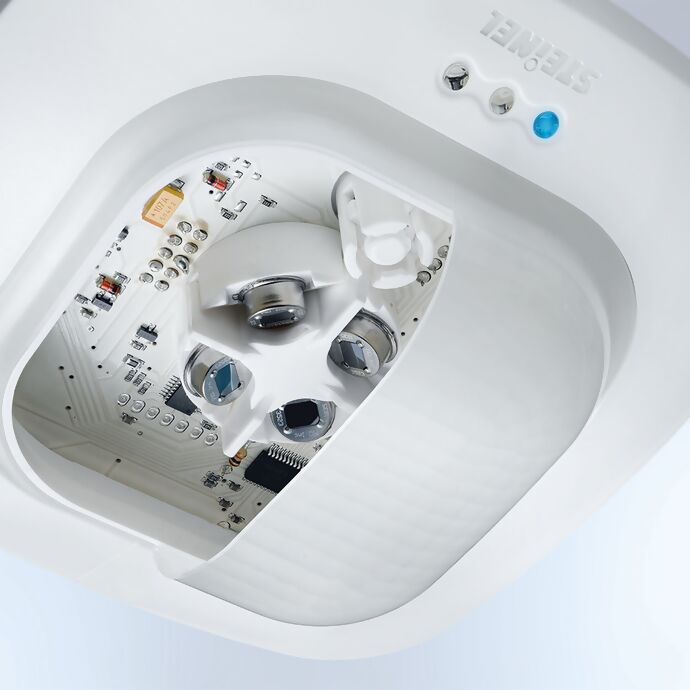

    4 pyros with DSP (Digital Signal Processing)
  • Image
    Smart Remote remote control optional
Downloads
Safety and Warning Instructions
1. Important Product Information
Please read carefully and keep in a safe place. – Under copyright. Reproduction either in whole or in part only with our consent.

2. General Safety Precautions
Risk of electric shock! 230 V means danger to life! Disconnect the power supply before attempting any work on the product. During installation, the electric power cable being connected may not be live. Therefore, switch off the power first and use a voltage tester to make sure the wiring is off-circuit. Installing the sensor involves work on the mains power supply. This work must therefore be carried out professionally in accordance with national wiring regulations and electrical operating conditions. (e.g. DE - VDE 0100, AT - ÖVE / ÖNORM E8001-1, CH - SEV 1000) For products with COM2 port: connection B1, B2 is a switching contact for low-energy circuits. This must be fuse-protected in line with the technical specifications. Only electronic ballasts with a floating control signal may be used at the DIM 1 to 10 V control output. No mains voltage may be connected to control output/input DA+ / DA-. Only use genuine replacement parts. Repairs may only be made by specialist workshops.

3. Proper Use
The use for which the sensor version is intended is described in the relevant general operating instructions. The general operating instructions can be opened by using the QR code from the Quick Start provided.

4. Electrical Connection
Important: incorrectly wired connections will produce a short circuit later on in the product or fuse box. In this case, you must identify the individual cables and re-connect them. An appropriate mains switch for switching ON and OFF can be installed in the mains lead.

5. Installation
Check all components for damage. Do not use the product if it is damaged. When installing the product, make sure the installation site is not subject to vibration. Select an appropriate mounting location, taking the reach and motion detection into consideration.

6. Cleaning and Maintenance
The product requires no maintenance. Hazard from electrical power. Contact between water and live parts can result in electrical shock, burns or death. Only clean the product in a dry state. Risk of damage to property! Using the wrong detergent can damage the product. Clean product with a moist cloth without detergent.

7. Disposal
Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner. Do not dispose of electrical and electronic equipment as domestic waste. EU countries only: Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.
