LED indoor light without sensor - Professional Line

RS PRO P2 S

LED indoor light without sensor - Professional Line

RS PRO P2 Neutral white

EAN 4007841056087

Circular classic. Perfect shape. Perfect efficiency. The perfect indoor light as version without sensor. The RS PRO P2 integrates harmoniously into corridors, hallways and stairwells. It combines timeless design and extremely easy installation with pioneering technology and can be interconnected with the version with sensor by cable. Output: 14,1 W with 1708 lm, 4000 K.

  •
    A perfect solution for the right light in the right place.
  •
    A perfect solution for the right light in the right place.

A perfect solution for the right light in the right place.

Today, indoor lighting solutions are in demand that not only provide the last word in convenience and intelligent technology but also integrate harmoniously into the particular interior design. We have found the perfect answer in the RS PRO P series. Timeless design and very easy installation combined with pioneering technology and maximum efficiency. Because with the virtually invisible 360-degree high-frequency sensor always switching the 14,1 W LED lighting system ON reliably, the indoor light is a real bonus for any building, both from the aspect of aesthetic appeal as well as cost-efficiency. The versions without sensor are quickly and easily interconnected via cable.

Technical Specifications

Quick overview

Download datasheet
With motion detector
No
Interconnection via
Cable
Output
14,1 W
Luminous flux total product
1708 lm
Colour temperature
4000 K
Article number
056087
PU1, net weight
0,587 kg
image/svg+xml 120 320 320
30 years (Ø 4,5h / day)
4000K neutral white
IP54
soft light start
connectable with master
energy saving
manufacturer's warranty steinel-professional.de/garantie
Light source not exchangeable
Control gear not exchangeable

General

Dimensions (Ø x H)
320 x 110 mm
With lamp
Yes, STEINEL LED system
With motion detector
No
Manufacturer's Warranty
5 years
Version
Neutral white
PU1, EAN
4007841056087
Colour
white
Fuse protection B10
54
Fuse protection B16
87
Fuse protection C10
90
Fuse protection C16
145

Fixation/ mounting

Installation site
wall, ceiling
Installation
Ceiling

Housing

Impact resistance
IK03
IP-rating
IP54
Protection class
II
Ambient temperature
from -10 up to 40 °C
Housing material
Plastic
Cover material
Plastic, opal
IP-rating, ceiling
IP54

Electrical equipement

Mains power supply
220 – 240 V / 50 – 60 Hz
Output
14,1 W
Starting current, maximum
13 A

Luminaire

Luminous flux total product
1708 lm
Total product efficiency
121 lm/W
Colour temperature
4000 K
Lamp
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
Yes
Lifetime LED according to IEC-62717 (L70)
100.000 h
Lifetime LED according to IEC-62717 (L80)
73.000 h
Lebensdauer LED nach IES TM-21 (L70)
60.000 h
Lifetime LED according to IES TM-21 (L80)
60.000 h
Colour Rendering Index CRI
= 82
Photobiological safety in accordance with EN 62471
RG1

General information

Article number
056087
European Article Number (EAN)
4007841056087

Functions

Main light adjustable
No

Connection

Interconnection via
Cable

General information

Product category
LED indoor light without sensor
Product Details
  • Image
    Including STEINEL LED system
  • Image
    Intelligent soft light start
  • Image

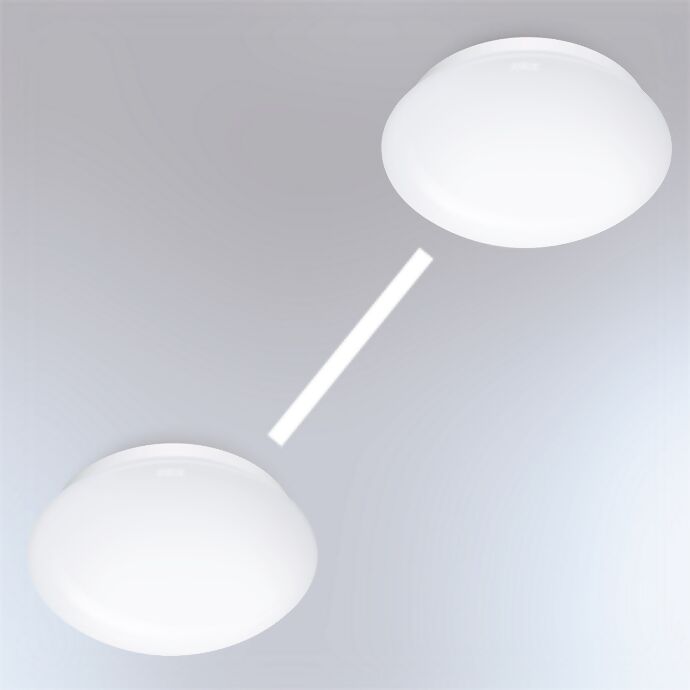

    Interconnectable by cable (maximum of 10 units)
Downloads
Safety and Warning Instructions
1. Important product information
Please read carefully and keep in a safe place. – Under copyright. Reproduction either in whole or in part only with our consent.

2. General safety precautions
Risk of electric shock! 230 V means danger to life! Disconnect the power supply before attempting any work on the unit. During installation, the electric power cable being connected must not be live. Therefore, switch off the power first and use a voltage tester to make sure the wiring is off-circuit. Installing the sensor-switched light involves work on the mains voltage supply. This work must therefore be carried out professionally in accordance with national wiring regulations and electrical operating conditions. (e.g. DE - VDE 0100, AT - ÖVE / ÖNORM E8001-1, CH - SEV 1000) Only use genuine replacement parts. Repairs may only be made by specialist workshops.

3. Proper use
Sensor-switched wall/ceiling light with active motion detector. Limited suitability for outdoor use as a result of detection sensitivity.

4. Electrical Connection
Important: the light source of this luminaire cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete luminaire must be replaced. Connection to a dimmer will result in damage to the sensor-switched light. Note: do not make direct contact with the LED.

5. Installation
Check all components for damage. Do not use the product if it is damaged. When installing the unit, make sure the installation site is not subject to vibration. Select an appropriate mounting location, taking the reach and motion detection into consideration.

6. Cleaning and Maintenance
The unit requires no maintenance. Hazard from electrical power. Contact between water and live parts can result in electrical shock, burns or death. Only clean unit in a dry state. Risk of damage to property! Using the wrong detergent can damage the light. Clean unit with a moist cloth without detergent.

7. Disposal
Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner. Do not dispose of electrical and electronic equipment as domestic waste. EU countries only: Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.
Manufacturer information
Manufacturer
STEINEL GmbH
Dieselstraße 80-84
33442 Herzebrock-Clarholz
Germany
