Sensor-switched LED indoor light - Professional Line

RS PRO DL 150 SC

Sensor-switched LED indoor light - Professional Line

RS PRO DL 150 SC

EAN 4007841087258
  • Sensor downlights for recessed ceiling mounting
  • Downlight with invisible 360° high-frequency sensor and Ø 7 m range
  • Ideal for corridors, functional rooms or washrooms thanks to IP54 protection rating on the room side
  • Light colour adjustable via controller on downlight: 3000 K (1109 lm) / 4000 K (1177 lm) / 5700 K (1137 lm)
  • WAGO clamp terminals for 3-pole through-wiring
  • For ceiling cut-outs of Ø140 - 160 mm, optional mounting adapter available
  • Bluetooth Mesh technology for minimal installation and maintenance effort as well as cross-range networking
  •
    Overview:
  •
    Easy mounting & installation:
  •
    Other functions:

Overview:

The future is moving in with these downlights for indoor use. The discreet indoor lights are based on state-of-the-art Bluetooth Mesh technology, guarantee convenient and future-proof light control at the highest STEINEL level and, with their low installation height of 73 mm, are ideal for stairwells, corridors, WCs, washrooms and changing rooms as well as functional and ancillary rooms. The RS PRO DL 150 SC has a diameter of 174 mm, a 360° high-frequency sensor with a range of 7 m and IP54 protection on the room side.

Technical Specifications

Quick overview

Application, place
Indoors
Installation
In-ceiling installation
With motion detector
Yes
Interconnection via
Bluetooth Mesh
Output
10,8 W
Colour temperature
3000 K, 4000 K, 5700 K
Article number
087258
PU1, net weight
0,99 kg
high frequency sensor 360°
max. ø 7 m
Settings via App
soft light start
0 - 100% main light brightness
0 - 100% basic light
IP54 room side
Control gear not exchangeable
Light source not exchangeable

General

Dimensions (Ø x H)
174 x 73 mm
With lamp
Yes, STEINEL LED system
With motion detector
Yes
Manufacturer's Warranty
5 years
Settings via
Smartphone, App, Bluetooth
Version
with motion detector & Bluetooth
PU1, EAN
4007841087258
Application, place
Indoors
Application, room
corridor / aisle, function room / ancillary room, WC / washroom, changing room, stairwell, kitchenette, reception / lobby, Indoors
Colour
white
Fuse protection B10
78
Fuse protection B16
125
Fuse protection C10
193
Fuse protection C16
209

Fixation/ mounting

Installation site
ceiling
Installation
Ceiling, In-ceiling installation

Housing

Impact resistance
IK05
IP-rating
IP20
Protection class
II
Ambient temperature
from -20 up to 40 °C
IP-rating, ceiling
IP54

Electrical equipement

Mains power supply
220 – 240 V / 50 – 60 Hz
Power consumption
0,5 W
Output
10,8 W

Sensor technology

Mounting height max.
4,00 m
HF-system
5,8 GHz
Slave modeselectable
Yes
Detection
also through glass, wood and stud walls
Reach, radial
Ø 7 m (38 m²)
Reach, tangential
Ø 7 m (38 m²)
Detection angle
360 °

Luminaire

Colour temperature
3000 K, 4000 K, 5700 K
Colour variation LED
SDCM3
Lamp
LED cannot be replaced
LED cooling system
Passive Thermo Control
Soft light start
Yes
Lifetime LED according to IEC-62717 (L70)
>54.000
Lifetime LED according to IEC-62717 (L80)
>54.000
Lebensdauer LED nach IES TM-21 (L70)
>54.000
Lifetime LED according to IES TM-21 (L80)
>54.000
Colour Rendering Index CRI
= 82
Photobiological safety in accordance with EN 62471
RG1
Luminous flux total product (3.000K)
1109 lm
Luminous flux total product (4.000K)
1177 lm
Luminous flux total product (5.700K)
1137 lm
Total product efficiency (3.000K)
103 lm/W
Total product efficiency (4.000K)
109 lm/W
Total product efficiency (5.700K)
105 lm/W

General information

Article number
087258
European Article Number (EAN)
4007841087258
Basic light level function in per cent
0 – 100 %

Functions

Functions
Connection to central battery systems, DIM function, Adjustable fade time when switching on and off, Color temperature change, Free selection of the light value in a luminaire group, Group parameterisation, Light sensor, Neighbouring group function, Orientation light, Encrypted communication
Twilight setting
2 – 2000 lx
Time setting
5 s – 60 Min.
Basic light level function
Yes
Basic light level function, detail
LED effect light
Basic light level function time
5s-60 min
Main light adjustable
0 - 100 %

Connection

Interconnection
Yes
Interconnection via
Bluetooth Mesh

General information

Product category
Sensor-switched LED indoor light
Product Details
  • Image

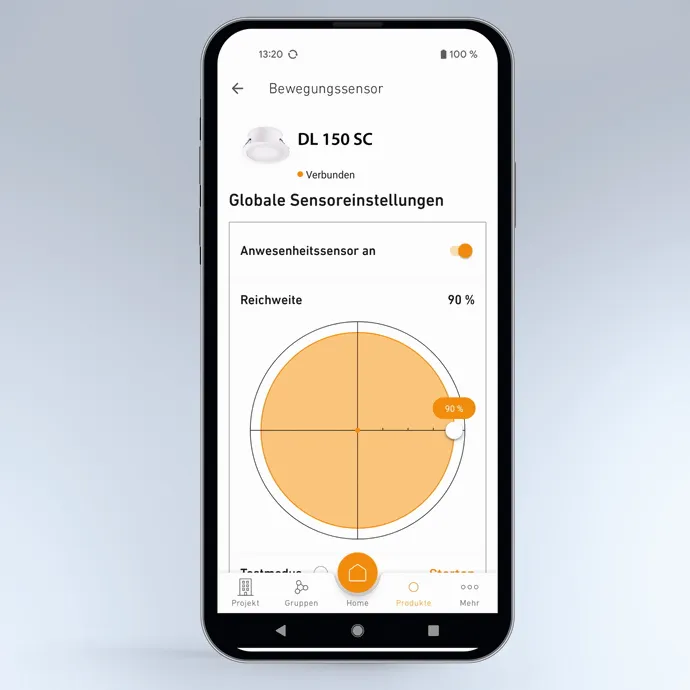

    Interconnectable and adjustable via Bluetooth
  • Image
    Colour temperature change
  • Image

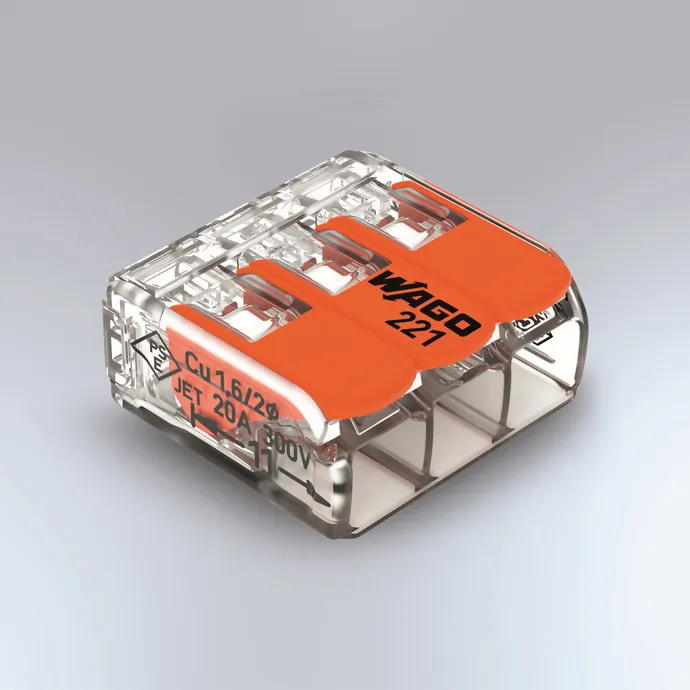

    WAGO terminal
